Vaporesso GTX Coils

Vaporesso GTX Coils are replaceable coils in a 5-pack for compatible Vaporesso tanks and pods. The three current options are 0.15 ohm Dual Mesh, 0.2 ohm Dual Mesh and 1.2 ohm Mesh.

GTX GO 40 and Luxe PM40: Of these three variants, 1.2 ohm Mesh fits. The two Dual Mesh variants 0.15 and 0.2 ohm should not be used with these devices.

What is included in the package?

The package contains five GTX coils with the selected resistance.

Resistance, power and e‑liquid

The materials are nickel‑chromium (NiCr) for 0.15 ohm Dual Mesh, nickel‑chromium (Ni80) for 0.2 ohm Dual Mesh and FeCrAl for 1.2 ohm Mesh. All three have a Triple Silicone construction, abbreviated TS.

Dual Mesh has two mesh nets that act as heating surface and are in contact with the cotton wick. The two low‑ohm variants are used for DTL, direct lung inhalation. 1.2 ohm Mesh is used for MTL, mouth‑to‑lung.

VG is vegetable glycerin and PG is propylene glycol. 70/30 means 70 percent VG and 30 percent PG; 50/50 means equal parts VG and PG.

Which devices are the current GTX coils compatible with?

The table applies to the three GTX variants and the specified pod types. GTX GO 40 and GO 80 use the TS versions. GTX GO 40 supports GTX coils from 0.3 ohm, including 0.3 ohm. The two Dual Mesh options 0.15 and 0.2 ohm therefore lie outside the device's support. Luxe XR MAX and MAX 2 are used with the Luxe XR Empty DTL pod for 0.15 or 0.2 ohm and the Luxe XR Empty MTL pod for 1.2 ohm.

Installation in Vaporesso Target PM80

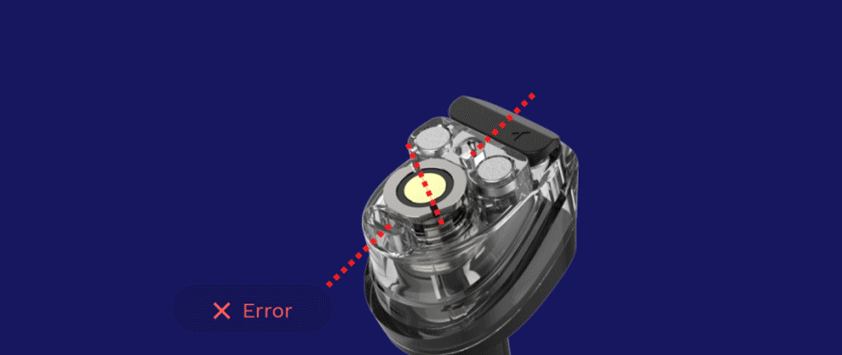

The GIF image shows installation in the Vaporesso Target PM80 pod.

1. Make sure the pod is empty of e‑liquid before the coil is changed.
2. Pull out the used coil from the pod.
3. Fit the new coil so that the base's flat sides follow the opening in the pod. Press the coil firmly so that the base lies flat, as in the green example in the GIF image.
